Screw-In Fixed Head PE Pipe Puller

CUT SHEET (PDF)

Solid steel puller is machined with a tapered buttress thread to grip the inside wall of polyethylene pipe or innerduct by screwing them into the opening. When properly installed, the gripping power of the puller is stronger than the tensile strength of the pipe.

  • Pull polyethylene water pipe, gas pipe and cable ducting with a vibratory plow.
  • Install innerduct inside large cable duct.
  • Install pipe and ducting in Horizontal and
  • Directional Drilling applications.

Installed easily using a screwdriver shaft or metal rod.

Part# Description Length (in) Large Eye (in) Small Eye (in) Minimum ID Grip (in) Maximum ID Grip (in)
71-DP-075L 3/4'' SCREW-IN PULLER 5.0 0.6250 0.3125 0.720 0.930
71-DP-100L 1'' SCREW-IN PULLER 5.5 0.6875 0.3750 0.940 1.150
71-DP-125L 1 1/4'' SCREW-IN PULLER 5.5 0.6875 0.3750 1.260 1.440
71-DP-150L 1 1/2'' SCREW-IN PULLER 6.0 0.8750 0.5000 1.480 1.660
71-DP-175L 1 3/4'' SCREW-IN PULLER 6.0 0.8750 0.4375 1.650 1.850
71-DP-200L 2'' SCREW-IN PULLER 6.0 0.8750 0.5000 1.910 2.080

Common 1/2''-2'' Pipe sizes

 Size Typical SDR Pipe OD Ave. Pipe ID
1/2'' CTS 7 0.625'' 0.439''
3/4'' CTS 9.7 0.875'' 0.685''
1'' CTS 11.5 1.125'' 0.919''
1'' CTS 12.5 1.125'' 0.935''
1/2'' IPS 9.3 0.840'' 0.650''
3/4'' IPS 11 1.050'' 0.848''
1'' IPS 11 1.315'' 1.061''
1-1/4'' IPS 10 1.660'' 1.308''
1-1/4'' IPS 11 1.660'' 1.340''
2'' IPS 11 2.375'' 1.917''

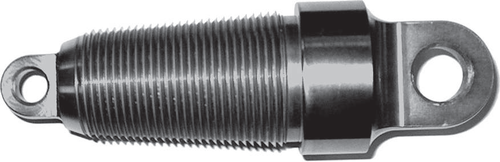

  • 2'' Screw-In Fixed Head PE Pipe Puller 2'' Screw-In Fixed Head PE Pipe Puller

    2'' Screw-In Fixed Head PE Pipe Puller

    Grip Range 1.91″ - 2.08″ With Rear Lug Pull polyethylene water pipe, gas pipe and cable ducting with a vibratory plow. Install innerduct inside large cable duct. Install pipe and ducting in Horizontal and Directional Drilling applications. ...

    $108.26
    Add to Cart
  • 1 3/4" Screw-In Fixed Head PE Pipe Puller 1 3/4" Screw-In Fixed Head PE Pipe Puller

    1 3/4" Screw-In Fixed Head PE Pipe Puller

    Grip Range 1.65″ - 1.85″ With Rear Lug. Pull polyethylene water pipe, gas pipe and cable ducting with a vibratory plow. Install innerduct inside large cable duct. Install pipe and ducting in Horizontal and Directional Drilling applications. ...

    $103.20
    Add to Cart
  • 1 1/2" Screw-In Fixed Head PE Pipe Puller 1 1/2" Screw-In Fixed Head PE Pipe Puller

    1 1/2" Screw-In Fixed Head PE Pipe Puller

    Grip Range 1.48″ - 1.66″ With Rear Lug. Pull polyethylene water pipe, gas pipe and cable ducting with a vibratory plow. Install innerduct inside large cable duct. Install pipe and ducting in Horizontal and Directional Drilling applications. ...

    $84.11
    Add to Cart
  • 1 1/4" Screw-In Fixed Head PE Pipe Puller 1 1/4" Screw-In Fixed Head PE Pipe Puller

    1 1/4" Screw-In Fixed Head PE Pipe Puller

    Grip Range 1.26″ - 1.44″ With Rear Lug. Pull polyethylene water pipe, gas pipe and cable ducting with a vibratory plow. Install innerduct inside large cable duct. Install pipe and ducting in Horizontal and Directional Drilling applications. ...

    $74.59
    Add to Cart
  • 1" Screw-In Fixed Head PE Pipe Puller 1" Screw-In Fixed Head PE Pipe Puller

    1" Screw-In Fixed Head PE Pipe Puller

    Grip Range 0.94″ - 1.15″ With Rear Lug. Pull polyethylene water pipe, gas pipe and cable ducting with a vibratory plow. Install innerduct inside large cable duct. Install pipe and ducting in Horizontal and Directional Drilling applications. ...

    $66.92
    Add to Cart
  • 3/4" Screw-In Fixed Head PE Pipe Puller 3/4" Screw-In Fixed Head PE Pipe Puller

    3/4" Screw-In Fixed Head PE Pipe Puller

    Grip Range 0.72″ - 0.93″ With Rear Lug. Pull polyethylene water pipe, gas pipe and cable ducting with a vibratory plow. Install innerduct inside large cable duct. Install pipe and ducting in Horizontal and Directional Drilling applications. ...

    $61.50
    Add to Cart
