AirSpade 4000


The fastest and safest method of digging without damaging buried pipes, electric or fiber optic cables.

Air Spade


Enhance worker safety!
Air Spade


Air Spade

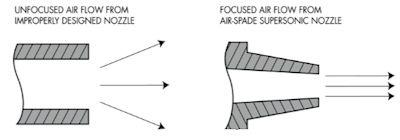

The AIR-SPADE uses a patented nozzle that turns air from your compressor into a high-speed, laser-like jet moving at twice the speed of sound 1,200 mph.

Designed with safety in mind, featuring a high-voltage insulated barrel and non-sparking components. The rugged UTILITY AIR-SPADE provides the highest degree of protection when working around underground electric, gas and other utility lines.

Its light weight minimizes operator fatigue and its air jet replaces the normal manual force needed to excavate in tight spots. It is especially valuable when used with a vacuum excavator.

The Air-Spade is great for...
  • Installing Flex-Kit Keyhole Encapsulation.
  • Prepping ALH System-Four tapping work.
  • Exposing a pipe joint for an Anabond Anaerobic Seal.
  • Roadwork utility locating.
Air Spade

UTILITY AIR-SPADE 4000 KIT includes:
UTILITY AIR-SPADE 4000 handle
4 ft. barrel with dirt shield
3 ft. extension
45 degree brass angled adapter
150 cfm supersonic brass nozzle
10 ft x 1" ID lightweight air hose

Rated Pressure: 90 psig (6.2 bar)
Rated Flow: 150 scfm (4.2m3/min)
Barrel: High Strength Fiberglass with Internal Hose
INNER AIR HOSE rated to 75kV per ft. for 5 minutes per SAE 100R7
OUTER AIR HOSE rated to 100kV per ft. for 5 minutes per ASTM F711

Length: 60.5 inches (154 cm)
Weight: 10.4 lbs. (4.7 kg)
Nozzle: Brass
Air Inlet:

3/4" FNPT



  • Utility AirSpade 4000 225 cfm Kit

    Utility AirSpade 4000 225 cfm Kit

    Kit includes the most popular components and accessories utilized by utility workers. Features the powerful Utility AirSpade 4000 air-excavation tool equipped with patented, Nickle Aluminum Bronze non-sparking supersonic nozzle for superior digging...

    $2,426.64
    Add to Cart
  • Utility AirSpade 4000 150 cfm Kit

    Utility AirSpade 4000 150 cfm Kit

    Kit includes the most popular components and accessories utilized by utility workers. Features the powerful Utility AirSpade 4000 air-excavation tool equipped with patented, Nickle Aluminum Bronze non-sparking supersonic nozzle for superior digging...

    $2,405.65
    Add to Cart
  • Utility AirSpade 4000 105 cfm Kit

    Utility AirSpade 4000 105 cfm Kit

    Kit includes the most popular components and accessories utilized by utility workers. Features the powerful Utility AirSpade 4000 air-excavation tool equipped with patented, Nickle Aluminum Bronze non-sparking supersonic nozzle for superior digging...

    $2,405.65
    Add to Cart
  • Utility AirSpade 4000 Handle Assembly

    Utility AirSpade 4000 Handle Assembly

    With its innovative design, the Utility AirSpade 4000 Handle Assembly sets a new standard for utility worker safety and comfort. Rugged, lightweight aluminum body and comfortable, ergonomic grip minimizes fatigue. Full size grip opening accommodates...

    $512.82
    Add to Cart
  • 225 cfm Brass Nozzle

    225 cfm Brass Nozzle

    Featured exclusively on AirSpade air-excavation tools, supersonic nozzles deliver superior performance vs. competitive nozzles, or open pipes. Patented design turns compressed air into high speed, laser-like jet moving at twice the speed of sound ? Mach...

    $456.94
    Add to Cart
  • Utility AirSpade 4000 150 cfm Nozzle

    Utility AirSpade 4000 150 cfm Nozzle

    Featured exclusively on AirSpade air-excavation tools, supersonic nozzles deliver superior performance vs. competitive nozzles, or open pipes. Patented design turns compressed air into high speed, laser-like jet moving at twice the speed of sound ? Mach...

    $439.16
    Add to Cart
  • Utility AirSpade 4000 105 cfm Nozzle

    Utility AirSpade 4000 105 cfm Nozzle

    Featured exclusively on AirSpade air-excavation tools, supersonic nozzles deliver superior performance vs. competitive nozzles, or open pipes. Patented design turns compressed air into high speed, laser-like jet moving at twice the speed of sound ? Mach...

    $421.37
    Add to Cart

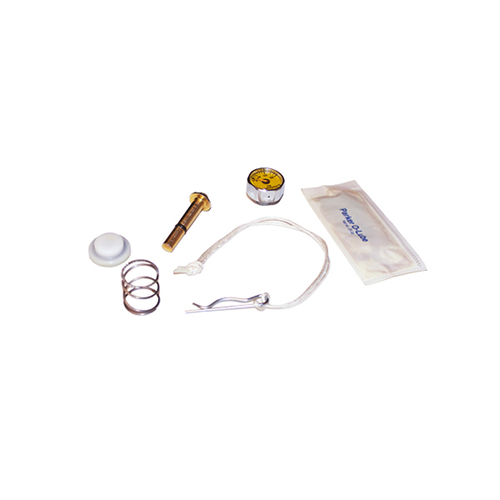

  • Utility AirSpade 4000 Handle Repair Kit

    Utility AirSpade 4000 Handle Repair Kit

    Provides all of the parts necessary to maintain and/or repair the Utility AirSpade 4000 handle.Spring and valve assemblyPressure gauge. Safety clip (with lanyard)O-ring lube(1) Spring and valve assembly(1) Pressure gauge(1) Safety clip (with lanyard)(1)...

    $47.23
    Add to Cart
