Product Description

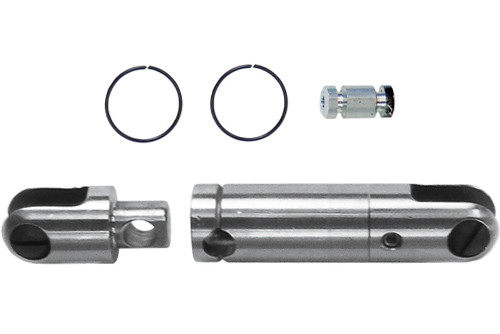

HDD Breakaway w/ integral Swivel - Must purchase pin sets separately.
Typically used for 1/2"-2" PE with break loads between 200-1000 lbs.
1-Pin Combination
Many utilities now require the use of a breakaway connector to maintain the pipe integrity during installation. The same connector works on different pipe sizes, each requiring different load settings.
Made from stainless and galvanized steel,
Breakaway Connectors are tested designed to protect polyethylene pipe from overload during installation by directional drilling or other methods. Connects between the pullback swivel and the pipe puller. The connectors are in three-parts held together by a group of pins. The pins are designed to break in tension at a specific load.
The connector assembly fastens together by using one or more of the breakaway pins. For example, if the operator uses a single 1,000 lbs. pin, the connector will come apart at 1,000 pounds. Different pin values can be mixed and matched to create several different breakaway
Compatable Pins
- 71-00535-002 WHITE 7/8'' 200LB PIN KIT10 PACK
- 71-00535-004 YELLOW 7/8'' 400LB PIN KIT10 PACK
- 71-00535-005 GREEN 7/8'' 500LB PIN KIT10 PACK
- 71-00535-006 ORANGE 7/8'' 600LB PIN KIT10 PACK
- 71-00535-008 GRAY 7/8'' 800LB PIN KIT10 PACK
- 71-00535-010 RED 7/8'' 1000LB PIN KIT10 PACK
